kubota usa KX030-4
$14,500.00
$8,300.00
Limited offer
Quantity
Specifications — KX030-4
General
Model
KX030-4
ROPS / FOPS
Canopy / Cab
Track Type
Rubber
Engine Model
V1505-E4-BH-3USA
Engine
Gross Output (SAE J1995)
24.7 HP (18.4 kW) @ 2250 rpm
Net Output (SAE J1349)
23.7 HP (17.7 kW) @ 2250 rpm

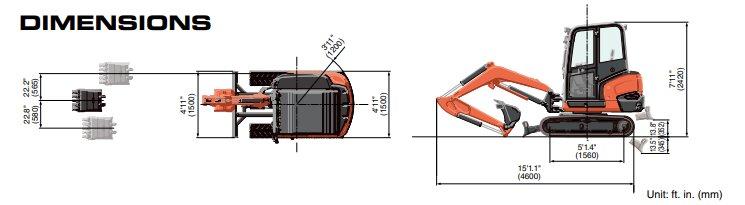

Dimensions
Overall Length
4 600 mm (15 ft 1.1 in)
Overall Height
2 420 mm (7 ft 11 in)
Overall Width
1 500 mm (4 ft 11 in)
Min. Ground Clearance
295 mm (11.6 in)
Operating Weight
Operating Weight
3 140 kg (6 924 lb)
Alt. Configuration
1 581 kg (3 484 lb)
Operator Reference
79 kg (175 lb) included
Hydraulic System
Pump Capacity
31.5 L/min × 2 + 18.0 L/min × 1
Auxiliary Flow
49.5 L/min (13.1 gpm)
Hydraulic Oil (Reservoir / System)
33.9 L (9.0 gal) / 52.0 L (13.7 gal)
Performance
Max Breakout Force
3 325 kgf (7 330 lb)
Max Traction Force
2 845–2 915 kgf (6 272–6 426 lb)
Travel Speed (Low / High)
2.7 / 4.3 km/h (1.7 / 2.7 mph)
Swing Speed
9.2 rpm
Boom Swing (Left / Right)
76° / 57°
Undercarriage & Blade
Crawler Length
1 980 mm (6 ft 5.9 in)
Tumbler Distance
1 560 mm (5 ft 1.4 in)
Shoe Width
300 mm (11.8 in)
Ground Contact Pressure
0.27 / 0.28 kgf/cm²
Blade Width
1 500 mm (4 ft 11 in)
Blade Lift / Drop
+300 mm (11.8 in) / −352 mm (13.8 in)
Capacities
Fuel Tank
48.0 L (12.7 gal)
30 Day Guarantee
30-day return or refund guarantee. This qualifies you to claim a refund or exchange within 30 days of receiving your items. To submit a claim, contact us at contact@buyminiexcavators.com
Shipping
Return Policy
High Quality
Fast shipping
Worldwide
Customer Support
Product Description
Specifications — KX030-4
General
Model
KX030-4
ROPS / FOPS
Canopy / Cab
Track Type
Rubber
Engine Model
V1505-E4-BH-3USA
Engine
Gross Output (SAE J1995)
24.7 HP (18.4 kW) @ 2250 rpm
Net Output (SAE J1349)
23.7 HP (17.7 kW) @ 2250 rpm
Dimensions
Overall Length
4 600 mm (15 ft 1.1 in)
Overall Height
2 420 mm (7 ft 11 in)
Overall Width
1 500 mm (4 ft 11 in)
Min. Ground Clearance
295 mm (11.6 in)
Operating Weight
Operating Weight
3 140 kg (6 924 lb)
Alt. Configuration
1 581 kg (3 484 lb)
Operator Reference
79 kg (175 lb) included
Hydraulic System
Pump Capacity
31.5 L/min × 2 + 18.0 L/min × 1
Auxiliary Flow
49.5 L/min (13.1 gpm)
Hydraulic Oil (Reservoir / System)
33.9 L (9.0 gal) / 52.0 L (13.7 gal)
Performance
Max Breakout Force
3 325 kgf (7 330 lb)
Max Traction Force
2 845–2 915 kgf (6 272–6 426 lb)
Travel Speed (Low / High)
2.7 / 4.3 km/h (1.7 / 2.7 mph)
Swing Speed
9.2 rpm
Boom Swing (Left / Right)
76° / 57°
Undercarriage & Blade
Crawler Length
1 980 mm (6 ft 5.9 in)
Tumbler Distance
1 560 mm (5 ft 1.4 in)
Shoe Width
300 mm (11.8 in)
Ground Contact Pressure
0.27 / 0.28 kgf/cm²
Blade Width
1 500 mm (4 ft 11 in)
Blade Lift / Drop
+300 mm (11.8 in) / −352 mm (13.8 in)
Capacities
Fuel Tank
48.0 L (12.7 gal)
