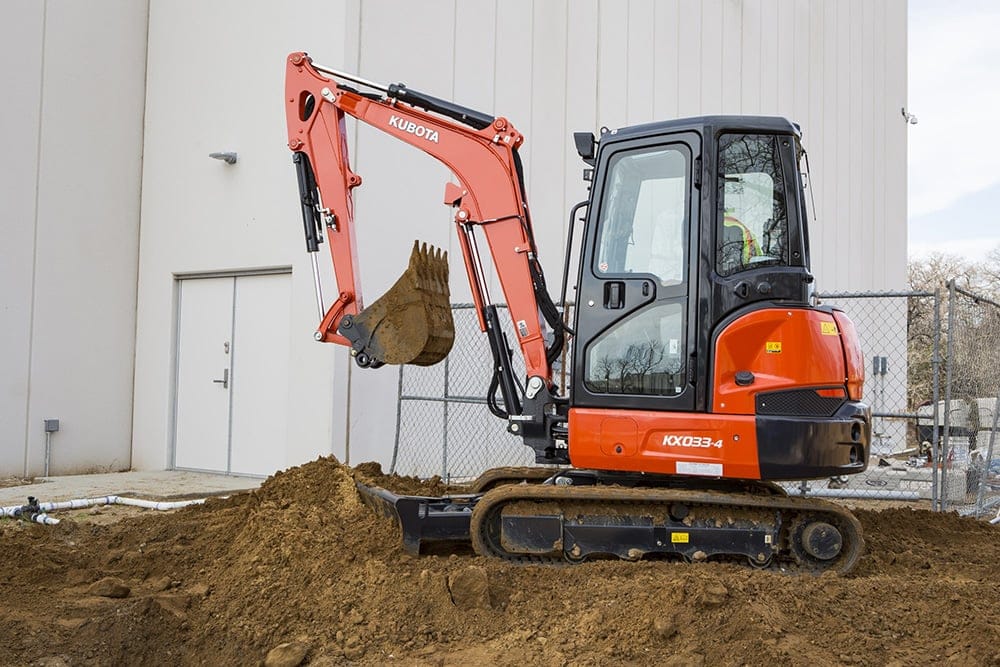

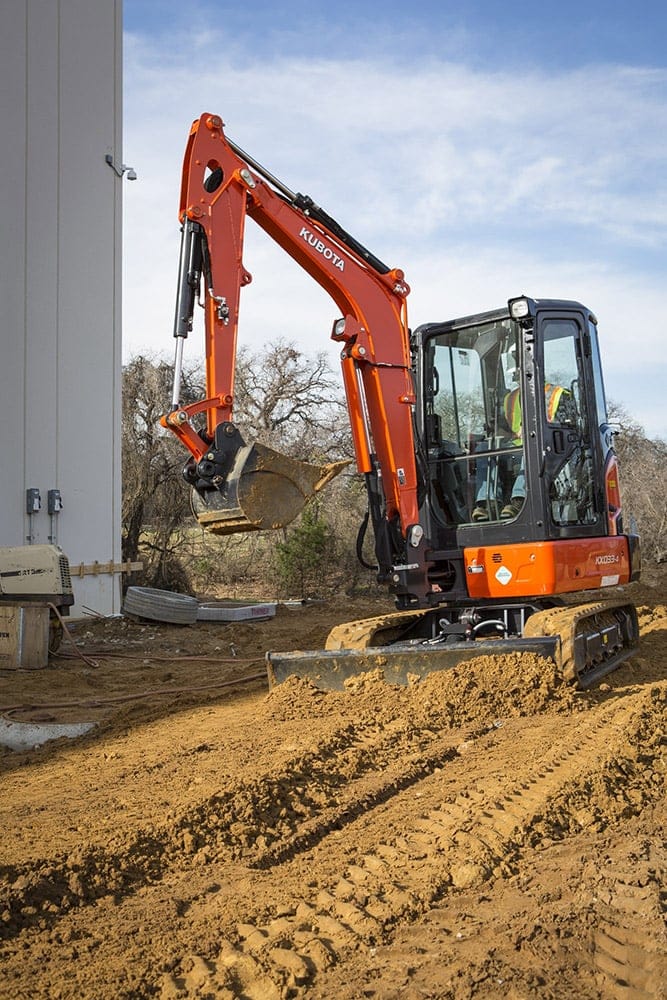

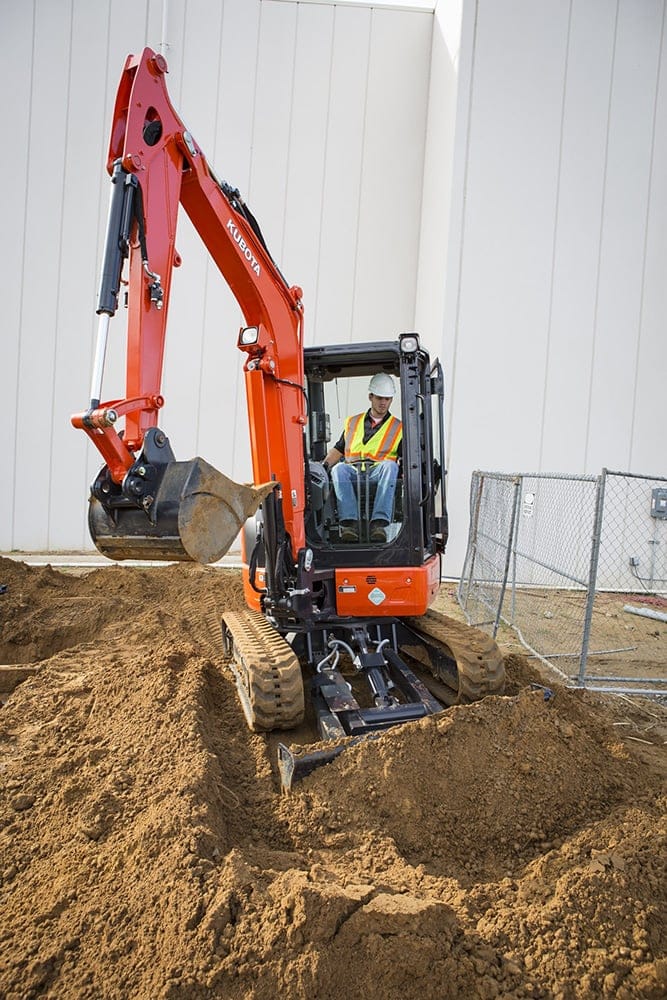

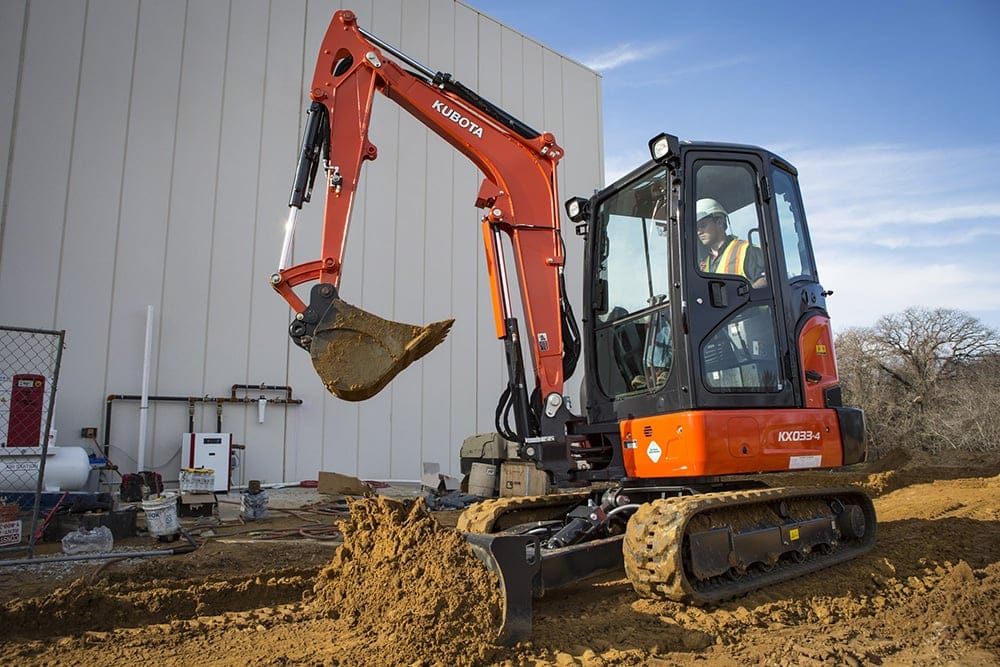

Kubota usa KX033-4
$16,500.00
$9,300.00
Limited offer
Quantity
With an available Extended Dipper and optional hydraulic angle blade, the Kubota KX033-4 is unlike any Kubota compact excavator you’ve ever seen before. Dig comfortably, with a spacious cab, and make sure that you can get the job done the right way, every time. Once you sit down behind the controls of the KX033-4, you’ll never want to step away. Kubota is the world’s #1 selling compact excavator for 20 years.*
Specifications — KX033-4
KX033-4
Standard Blade
General
ROPS / OPG (TOP Guard, Level 1)
Canopy / Cab
Track Type
Rubber / Steel
Engine
Engine Model
Kubota D1703M-DI-E4
Gross Output (SAE J1995)
24.8 HP (18.5 kW) @ 2200 rpm
Net Output (SAE J1349)
23.2 HP (17.3 kW) @ 2200 rpm
Displacement
1 647 cc (100.5 cu in)
Dimensions
Overall Length
4 730 mm (15'6")
Overall Height (Canopy / Cab)
2 480 / 2 470 mm (8'1" / 8'1")
Overall Width
1 550 mm (5'1")
Min. Ground Clearance
290 mm (11.4")
Boom Offset (Right / Left)
450 / 450 mm (1'4.1" / 1'5.7")
Blade Lift (Upper / Lower)
345 / 375 mm (12.4" / 12.8")
Hydraulic System
Pump Capacity
39.6 L/min × 2 + 20.9 L/min × 1 (10.5×2 + 5.5×1 GPM)
Auxiliary Hydraulic Flow
20.9 L/min (5.5 GPM)
Max Breakout Force
3 697 / 1 756 kgf (8 138 / 3 869 lb) — Bucket / Arm
KX033-4
Angle Blade
Blade
Blade Width
—
Blade Height
385 mm (13.2")
Max Lift Above Ground
405 mm (15.9")
Max Drop Below Ground
480 mm (18.9")
Blade Angle (L / R)
25° / 25°
Drive, Swing & Capacities
Travel Speed (Low / High)
3.0 / 4.6 km/h (1.9 / 2.9 mph)
Max Traction Force
2 763 kgf (6 091 lb) — Low speed
Tumbler Distance
1 665 mm (5'5.6")
Crawler Length
2 000 mm (6'10.6")
Shoe Width
300 mm (11.8")
Swing Speed
8.9 rpm
Boom Swing (L / R)
70° / 48°
Hydraulic Oil (Reservoir / System)
44.6 / 61 L (11.8 / 16.1 gal)
Fuel Tank
46.9 L (12.4 gal)
Operating Weight (incl. 79 kg / 175 lb operator)
Canopy: 3 365–3 618 kg (7 420–7 978 lb)
Cab: 3 511–3 600 kg (7 742–7 938 lb)
Cab: 3 511–3 600 kg (7 742–7 938 lb)
